Modular test floor 4000 kN
modular test floor of 15 m by 60 m

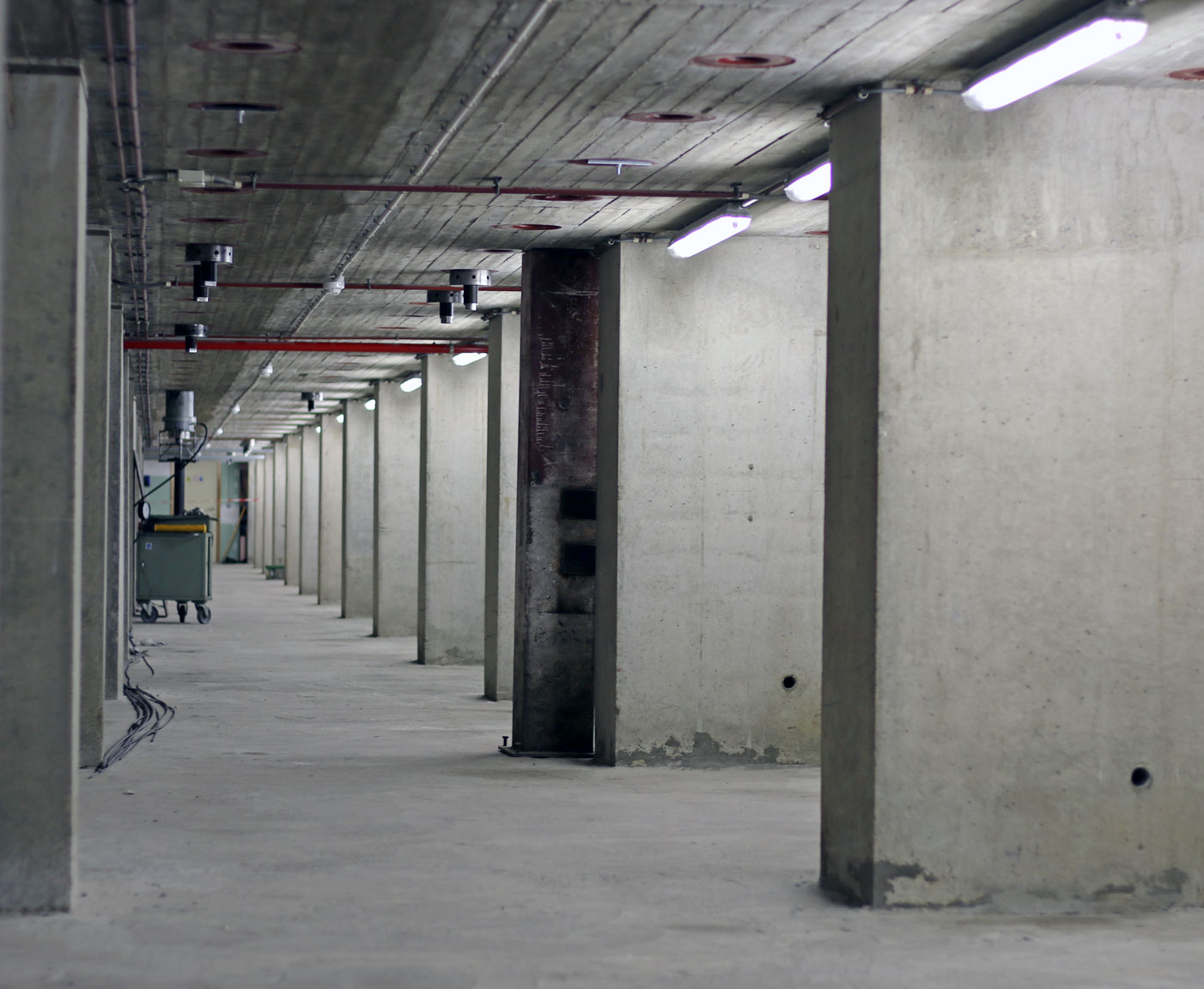

Laboratory Soete is equipped with a modular test floor of 15 m by 60 m
Features:

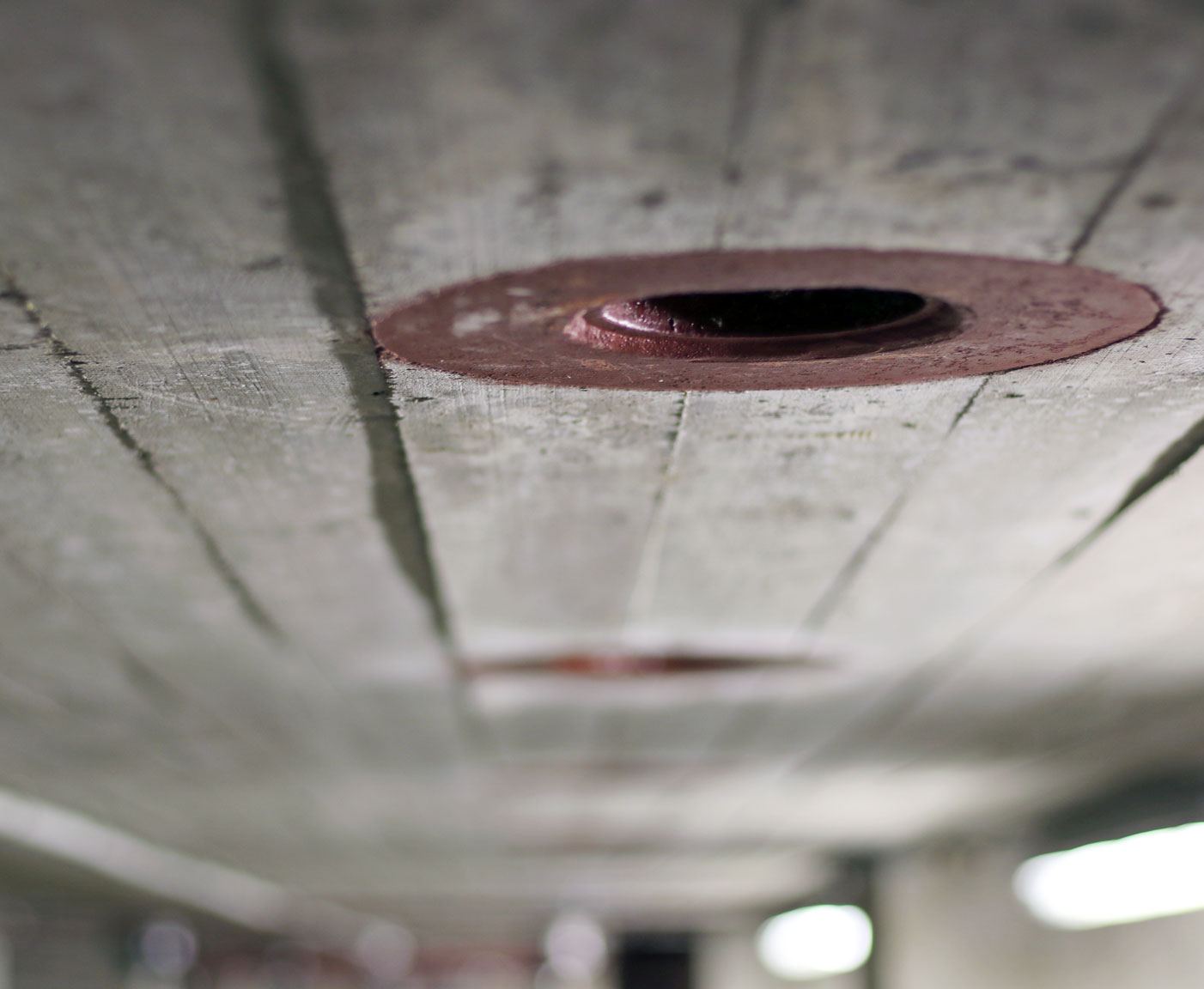

- The anchor points are placed in a grid with a pitch of 1.2 meters.
- Single anchor point load capacity: ±1000 kN, 1000 kNm
- Grid 4-point quasi-static load capacity: ± 4000 kN
- Grid 4-point dynamic load capacity: ± 2000kN
- Strong floor overall bending moment capacity: 17000 kNm

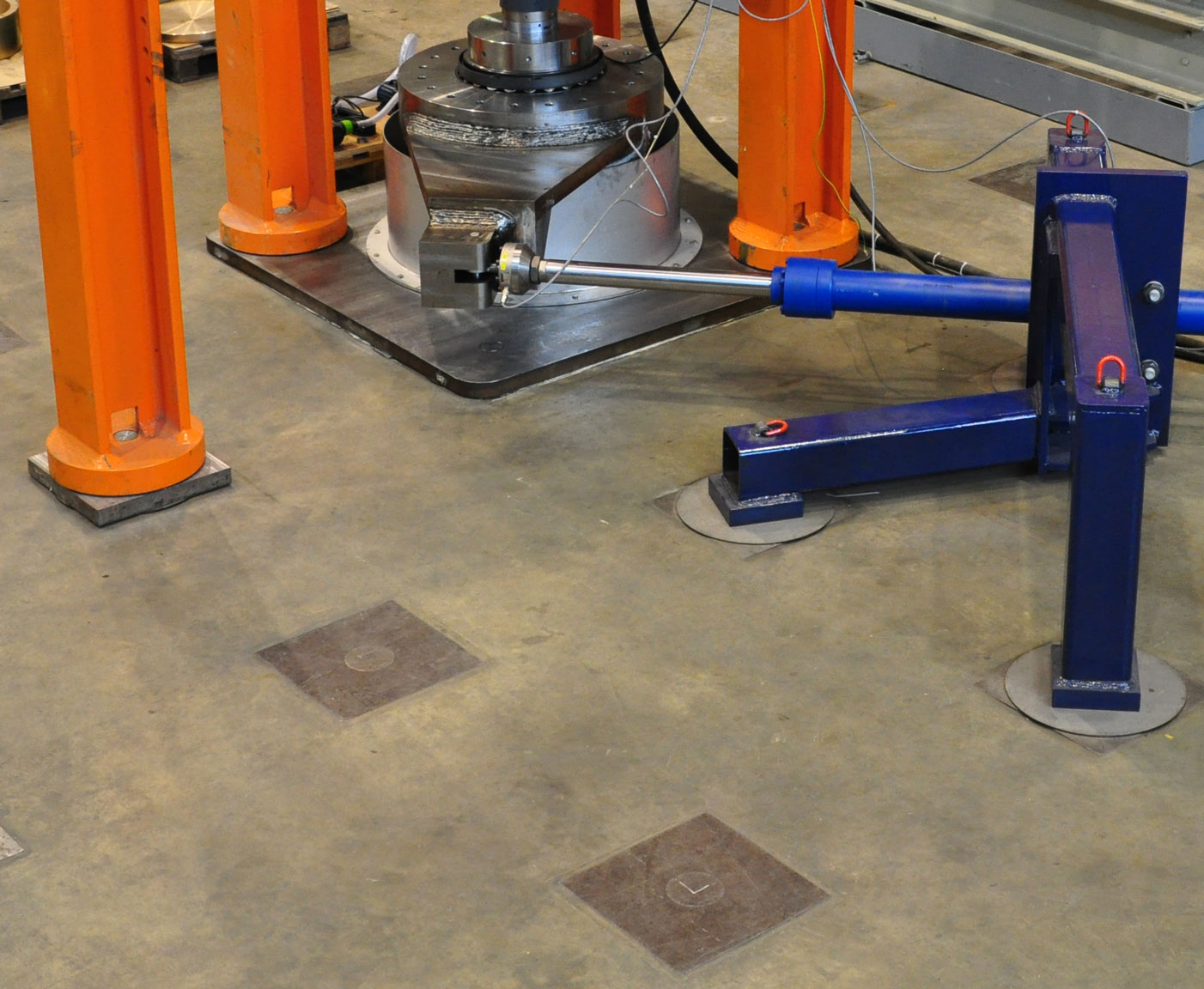

- Custom designed test rigs can be built upon request
Application:
As such, e.g. a full-scale four-point bend test with an inner support distance of 2.4m with individual point loads up to 4000 kN (quasi-static) and 2000 kN (dynamic) are possible at each support location.
Max. specimen dimensions
- length: approx. 20m
- width: 4.2m
- height: 2.5m
- weight: 40.000kg
