High capacity multipurpose test rig up to 8000kN
Features
Measured quantities include:
- Tensile force (load cells)

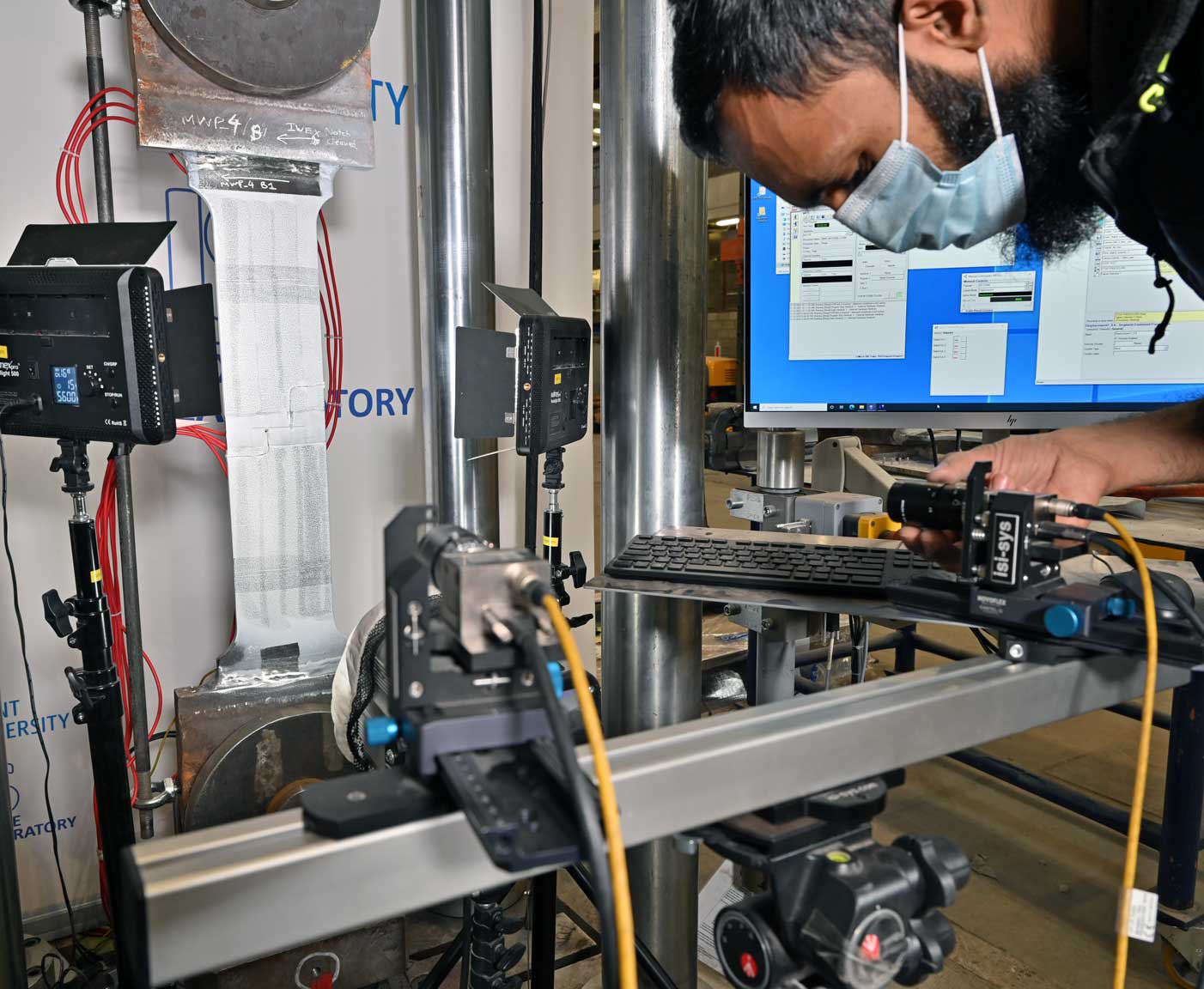

- Strains in separate sections of the specimen and global strain (LVDT’s)
- Crack Mouth Opening Displacement CMOD (clip gauge)
If desired, the 2500 kN load frame can be used as a tribotester by placing a horizontal clamp consisting of 2 end plates, four load
bars and 6 pistons inside the load frame.
Property | MTS 2500 | 8000 kN tensile test rig |
Force | Max. 2500 kN | Max. 8000 kN |
Normal force (tribotest setup) | Max. 6000 kN | - |
Width | 760 mm | 300 mm |
Length | 2150 mm (without grips) | 1200 mm |
Temperature range | -60 °C up to 200 °C | -60 °C up to 200 °C |
